Item specifics
  • Item Type: RGB Controler
  • Power Source: DC
  • Certification: CE,RoHS
  • Connection Mode: line connect
  • Voltage: 5-24V
  • Wattage: 600pixels
  • Applicable Lights: WS2811/WS2812b/WS2813 IC LED strip
  • Brand Name: CHINLY
  • Material: PVC
  • Warranty: 1years
  • Max. Load Power: 600 pixels
  • Controled Method: RF remote
  • Remote Distance: 20M
  • Model Number: SR5433
  • Oscillation frequency: 50/60Hz
  • Features: RGB controller for WS2812b strip
Product Description

Related Items--------------------------------------------------------------------------------------------------------------------------------------------------

WS2811/WS2812B/WS2813/USC1903 LED digital music controller with RF touch remote;DC5-24V input;can control max 600pixels

Item Detail---------------------------------------------------------------------------------------------------------------------------------------------------------

Product video please click link :       youtu.be/Je9--QNP5s8       ( Copy the link to the browser)

Features:
1. The radio-frequency capacitive touch controller, effective control of distance of 20 m
2. Using LED buttons backlight, easy to use at night

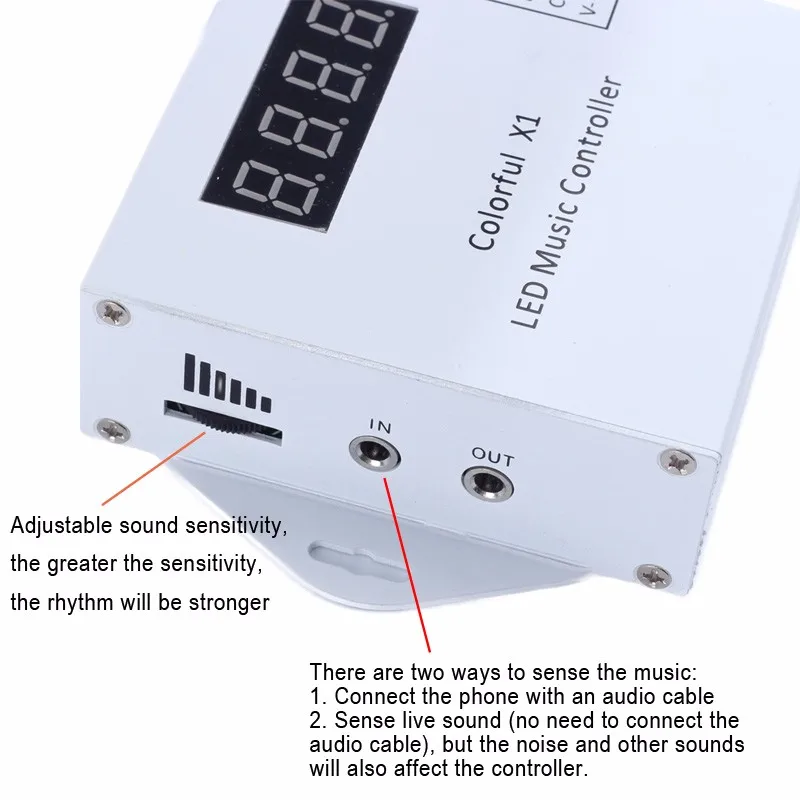

3. The audio port, the 3.5 MM audio access, undisturbed when using music mode, make the lights change rhythm is better
4. The advanced PWM pulse width modulation technology, change effect is exquisite, the fixed link end connection
5. A variety of classic mode, follow the selected
6.27 music change modes let whole atmosphere more rhythm.
7. All remote control to wear a special fixed seat, easy to install

Application:
Interior decoration:
Clubs, bars, corridor, room, KTV, clubs, museums, etc.
Outdoor decoration:
Plazas, commercial buildings, entertainment clubs, scenic spot light, evening on location, etc.

Specifications:
. input power: : DC 5V~ 24V
. output: data signal
. support IC type:WS2811/WS2812B/WS2813/USC1903
. Drive pixel quantity:600 pixels
. voice control: 70 db
. remote control battery: 1.5V AAA *2  ( Products do not contain batteries)
. remote standby power consumption: 0.08 mW
. products working temperature: - 20 ~ 60 degree centigrade
. Music mode:01-03,10-15,22-27 mode Suitable for the rhythm strong music type;04-09,16-21 mode Suitable for soothing music class.
Package Included:

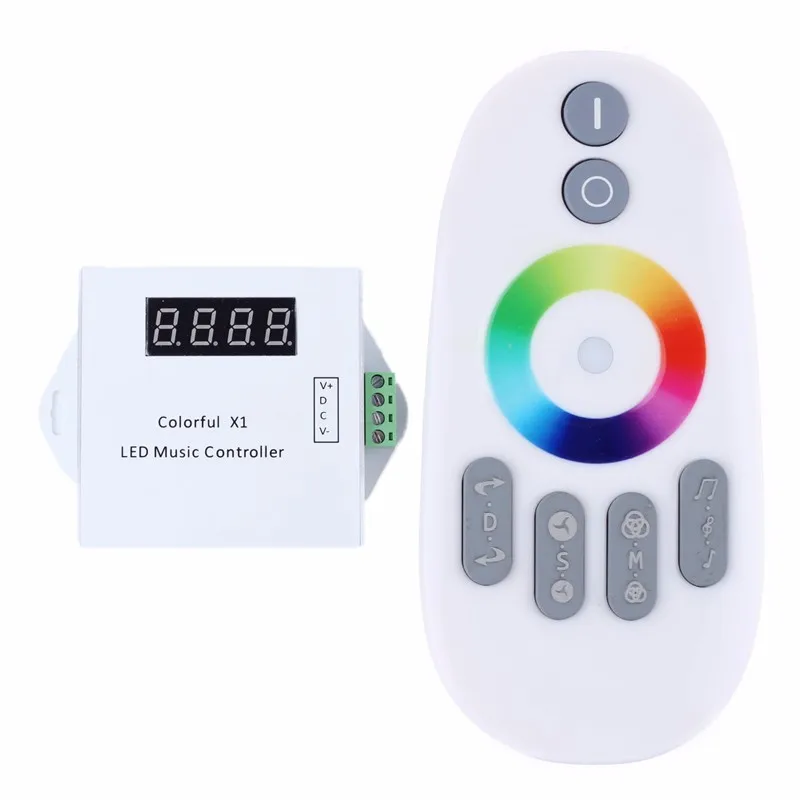

1xMusic Controller
1x Remote
1x3.5 MM audio line
Product Photo--------------------------------------------------------------------------------------------------------------------------------------------------
11 12    14 15

Service Policy--------------------------------------------------------------------------------------------------------------------------------------------------  1 2
Packaging Details
  • Unit Type: piece
  • Package Weight: 0.3kg (0.66lb.)
  • Package Size: 9cm x 8cm x 7cm (3.54in x 3.15in x 2.76in)
