Item specifics
  • Item Type: RGB Controler
  • Power Source: DC
  • Wattage: 144W @ 12V; 288W @ 24V
  • Features: RGB controller
  • Warranty: 2 years
  • Connection Mode: common anode
  • Model Number: SR5127
  • Certification: CE,RoHS,CCC
  • Voltage: 5-24V
  • Max. Load Power: 144W
  • Material: Glass panel
  • Brand Name: CHINLY
  • Applicable Lights: 12V-24v LED strip
  • Controled Method: Touch
  • Remote Distance: 100M
  • Button Number: 9
Product Description

Related Items--------------------------------------------------------------------------------------------------------------------------------------------------

DIY home lighting NEW RGB LED Touch Panel Controller led dimmer for DC12V LED strip lights

Item Detail---------------------------------------------------------------------------------------------------------------------------------------------------------

Product video please click link :     youtu.be/8QhD4iN4Vis     ( Copy the link to the  browser)

Features:
RGB touching Controller is new generated product. The controller is adopted
glass panel and ABS plastic to base. Professional PCB design to aviod circuite
problem. Luxury Design,Fashion appearance.The controller can be installed embedly
to wall.Can be connected to all led lights in DC12-24V. Example: led module, dot maxtric light,flexible
strip, wall washer ect. Install conveniencly and operate easily. Can be
apllicated to hotel decoration, home decoration, commercial lighting area and leisure
place ect.
Parameter:
Product name:RGB Touch controller
3CH output:12A/3CH
Input voltage:DC12-24V
Max Power: 144W(12V)   288W(24V)
Connecting mode: common anode
Static Power consumption: <1W

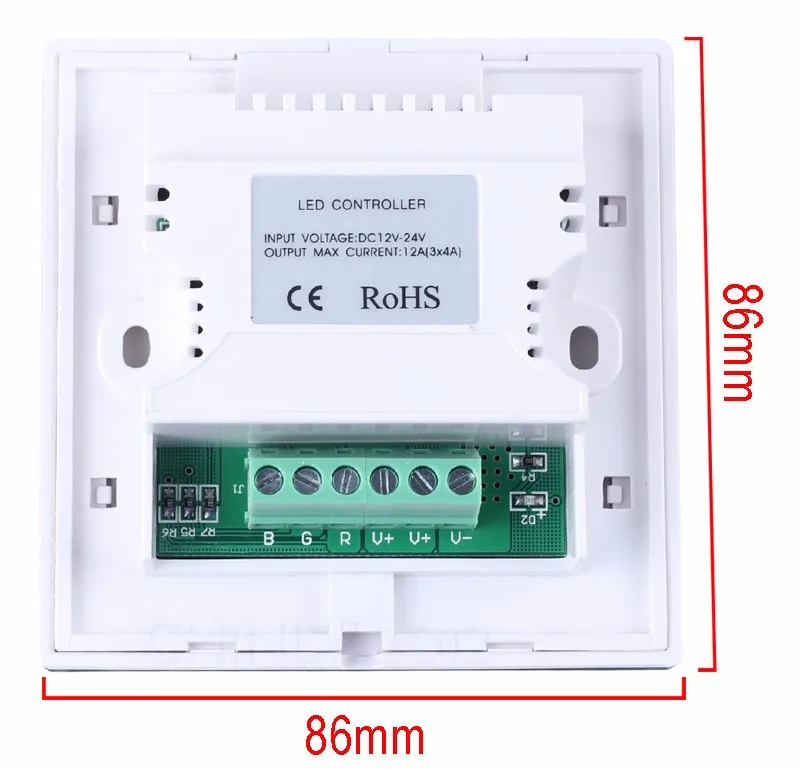

Size: 86*86*34mm
Package Size:95MM*95MM*60MM
Gross Weight: 220g
Product Photo--------------------------------------------------------------------------------------------------------------------------------------------------- HTB1pMlTFVXXXXXiXpXXq6xXFXXXh HTB1n70UFVXXXXbJXXXXq6xXFXXXG HTB1srKiFVXXXXaVXXXXq6xXFXXXE
Notice:

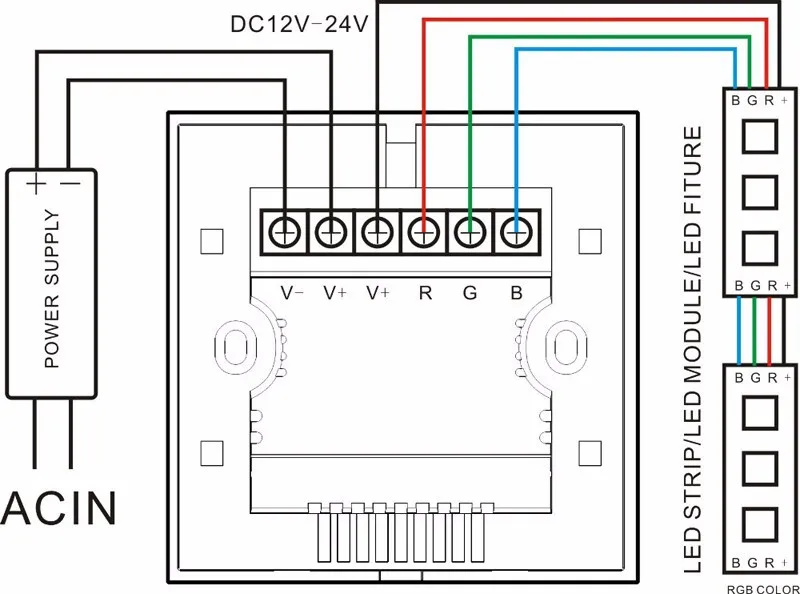

1.Connect the light cable to controller, then connect to power supply. Make sure the
connection correctly before power on.
2. Make sure the power is DC12V-24V, Otherwise, the controller will be broken
3. When touch by hand, the indicator on top left corner shows red, which means that you have already
touch it. If not, you do not touch it yet
4. Normally, the indicator lights around the binding post will always light after connecting. Or there is
something wrong with the wiring
HTB1kltUFVXXXXbwXXXXq6xXFXXXL
