Item specifics
  • Item Type: RGB Controler
  • Power Source: DC
  • Remote Distance: non
  • Controled Method: Common Anode
  • Certification: CE,RoHS
  • Model Number: TC420
  • Voltage: 12-24V
  • Applicable Lights: led strips,led modules,
  • Warranty: 1 year
  • Brand Name: newstyle
  • Material: Aluminum
  • Oscillation frequency: non
  • Wattage: 240w
  • Connection Mode: Common Anode
  • Max. Load Power: 480w
  • Features: LED Time Dimmer
  • Button Number: 4
  • Output: 5 Channels
  • External Dimension: 120MM X 69MM X 24MM
Product Description
HTB1gwQRJVXXXXbdXFXXq6xXFXXXtHTB1dLoDJVXXXXXeaXXXq6xXFXXXXHTB1eTgLJVXXXXc9XFXXq6xXFXXXWHTB1GHcOJVXXXXcUXFXXq6xXFXXXxHTB1.8wBJVXXXXXdXpXXq6xXFXXXBHTB1IMcTJVXXXXaQXFXXq6xXFXXXn

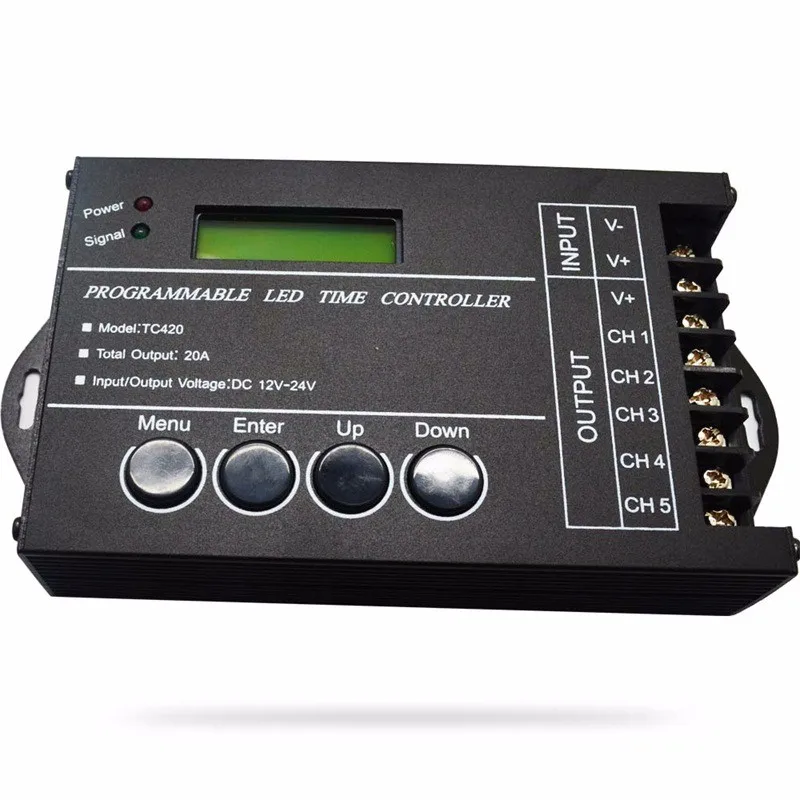

The led lights could be controlled like a Clock under the TC 420 Controller

Here is an upper computer in the programmable time controller to make the load output change over time, the customer may customize schedule mode they want through the upper PC. Then through the USB port to download required schedule to the controller.The upper PC in addition to the function of editing schedule mode ,it also can be setup time for the controller because of synchronous clock function of upper host .If user want to see the schedule mode effect after editing , they can use fast sowing function of upper . Because there is no delete function of the upper host ,so the mode name display space will come into blank as long as you execute delete .This controller can control load of led changing effect no more than five channels .And it can be used in the occasion of the plant lights, light box advertising, the stage, home decoration, etc.

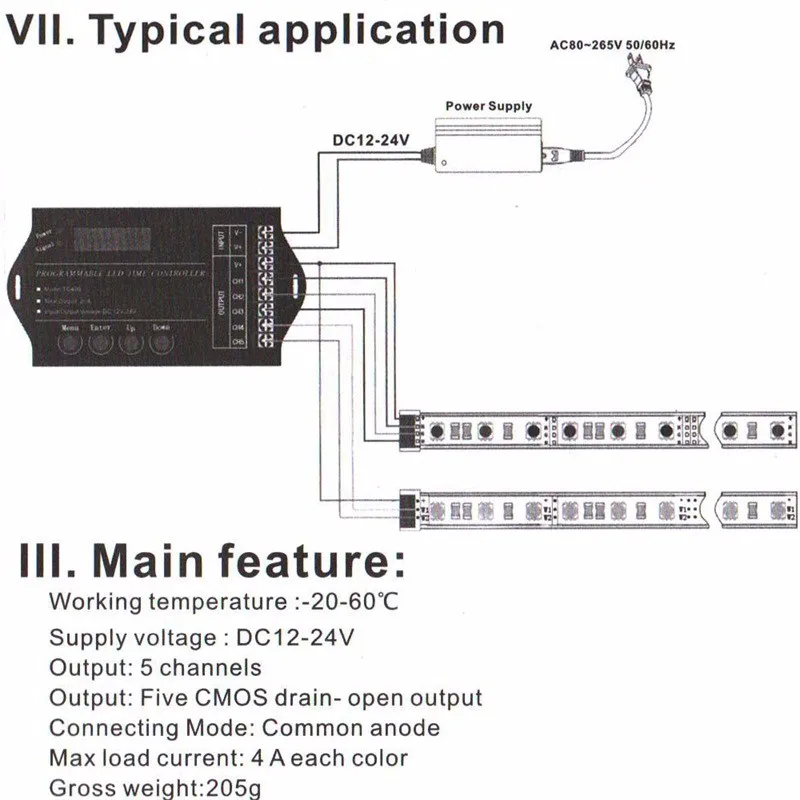

Working temperature:-20-60°C
Supply voltage:DC12-24V
Output:5 channels(five COMS drain-open output)
Max load current:4A each color
Color:Black
Connection mode: common anode
Gross Weight:205g
External dimension:120*69*24mm

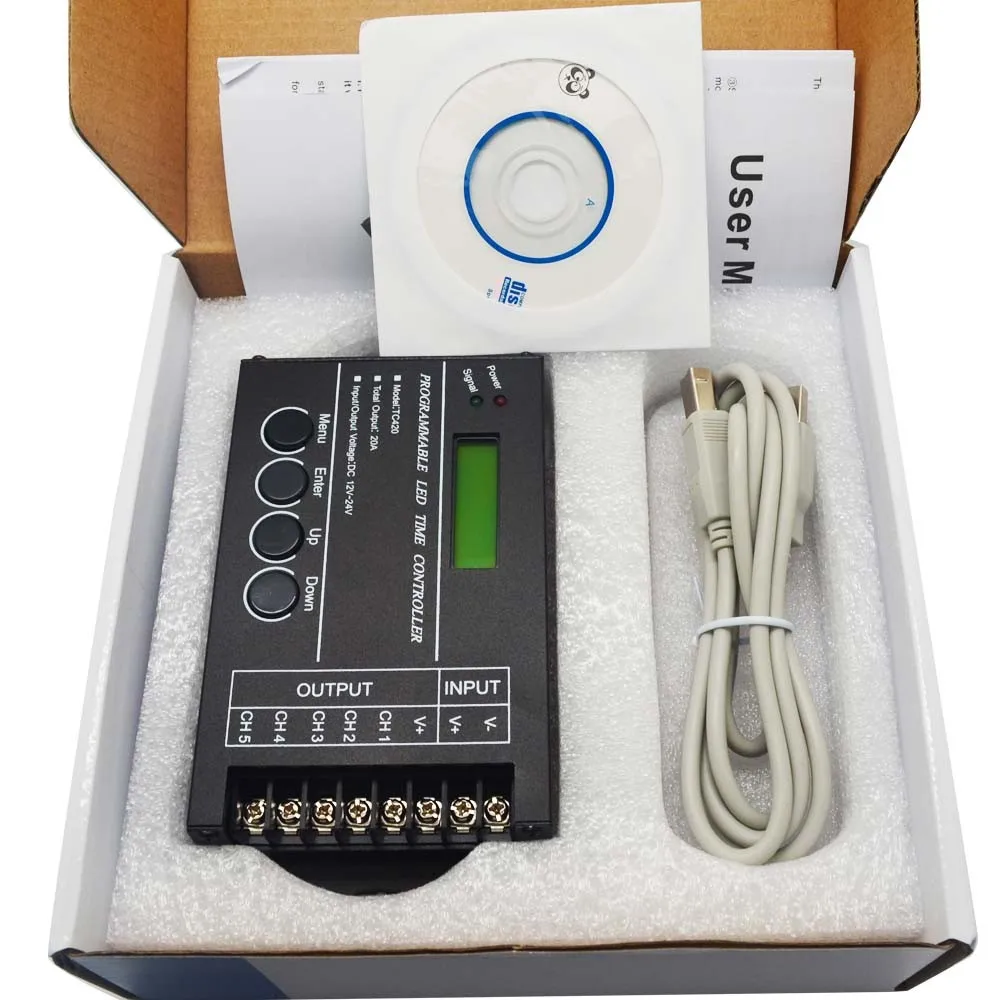

1 XLED time controller
1 X User manual


TC420E TC420C TC420A TC420H TC420L TC420K TC420J




 Thanks for your interesting in our products,We belive you will enjoy your purchase experience with our high quality controller and best service for you.
