Item specifics
  • Item Type: Strip
  • Power Source: DC
  • Color Temp(K): k
  • Power Generation: Swivel
  • Certification: CE,FCC,RoHS,CCC
  • Power Consumption (W/m): 7.36W/m
  • LED Chip Model: SMD5050
  • LEDs Number/M: 60 pcs/m
  • Strip type: SMD
  • Specifications (light beads / m): 50
  • Average Life (hrs): 50000hour
  • Model Number: rgbw rgbww led strip
  • LED Chip Brand: Epistar
  • Occasion: living room
  • Voltage: 12V
  • Waterproof: Yes
  • Color Temperature: Warm White (2700-3500K)
Product Description

Note:

led strip ip30:non-waterproof

led strip ip65:waterproof

rgbw=rgb+white

rgbww=rgb+warm white

led strip Secification:

LED Type: 5050 RGBW RGBWW SMD LED
Quantity: 300 leds / 5 Meter or 60 leds / Meter
View angle: 120 °
Working Input Voltage: DC12V
Working Temperature: -20 ° ~ 60 °
Long life:> 100,000 hours
led strip light type: rgb
Waterproof level: IP65 Waterproof
                            IP30 Non-waterproof
P60820-184012P60820-183553

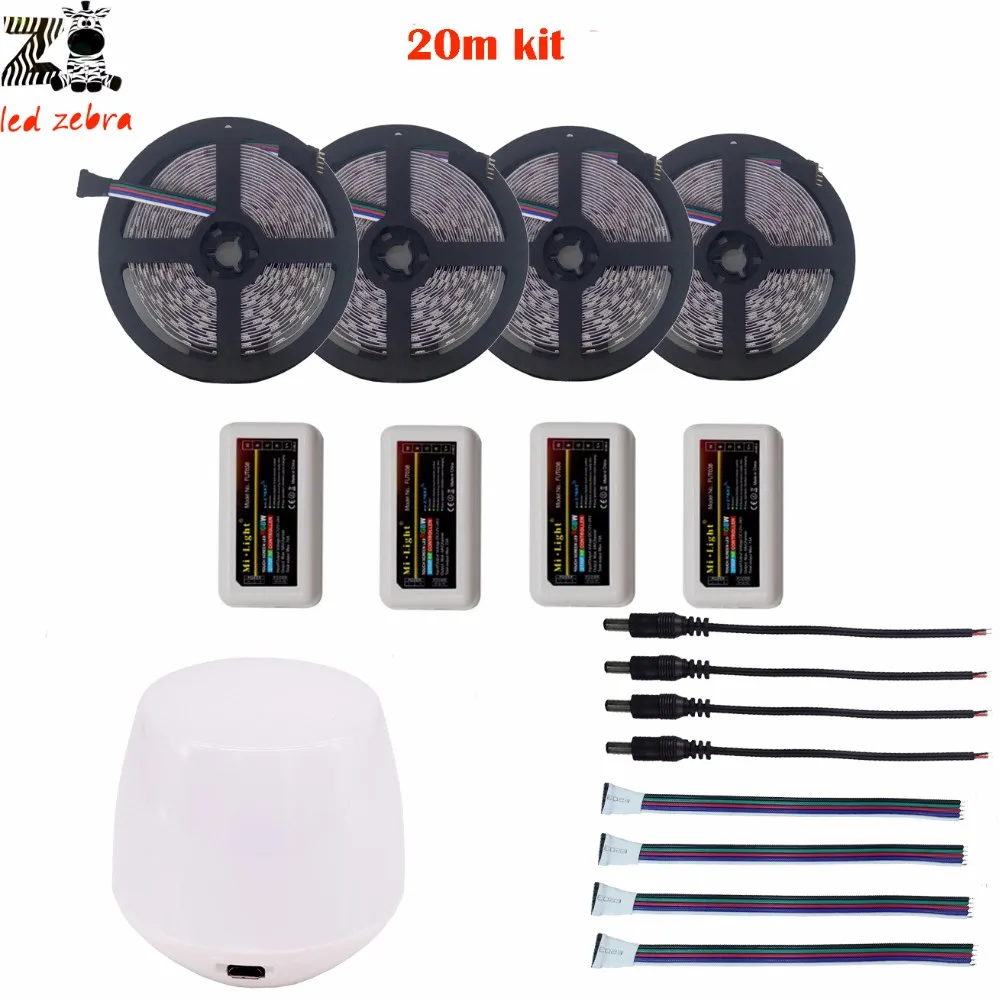

20m ip30 kit&20m ip65 kit:

-10

package include:

4pcs 5m ip30/ip65 led strip

1pcs wifi controller

4pcs led controller

4pcs dc male connector

4pcs 5pin connenctor

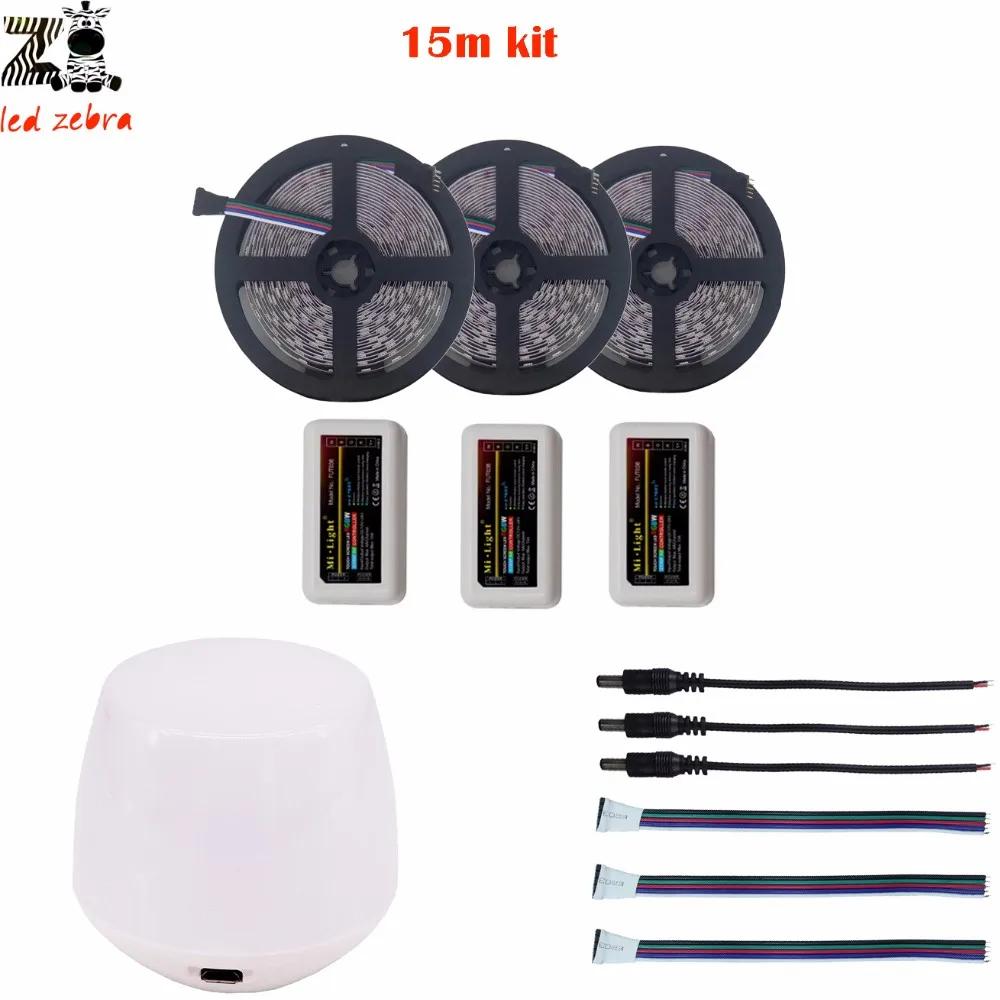

15m ip30 kit&15m ip65 kit:

-11

package include:

3pcs 5m ip30/ip65 led strip

1pcs wifi controller

3pcs led controller

3pcs dc male connector

3pcs 5pin connenctor


10m ip30 kit&10m ip65 kit:
-12

package include:

2pcs 5m ip30/ip65 led strip

1pcs wifi controller

2pcs led controller

2pcs dc male connector

2pcs 5pin connenctor

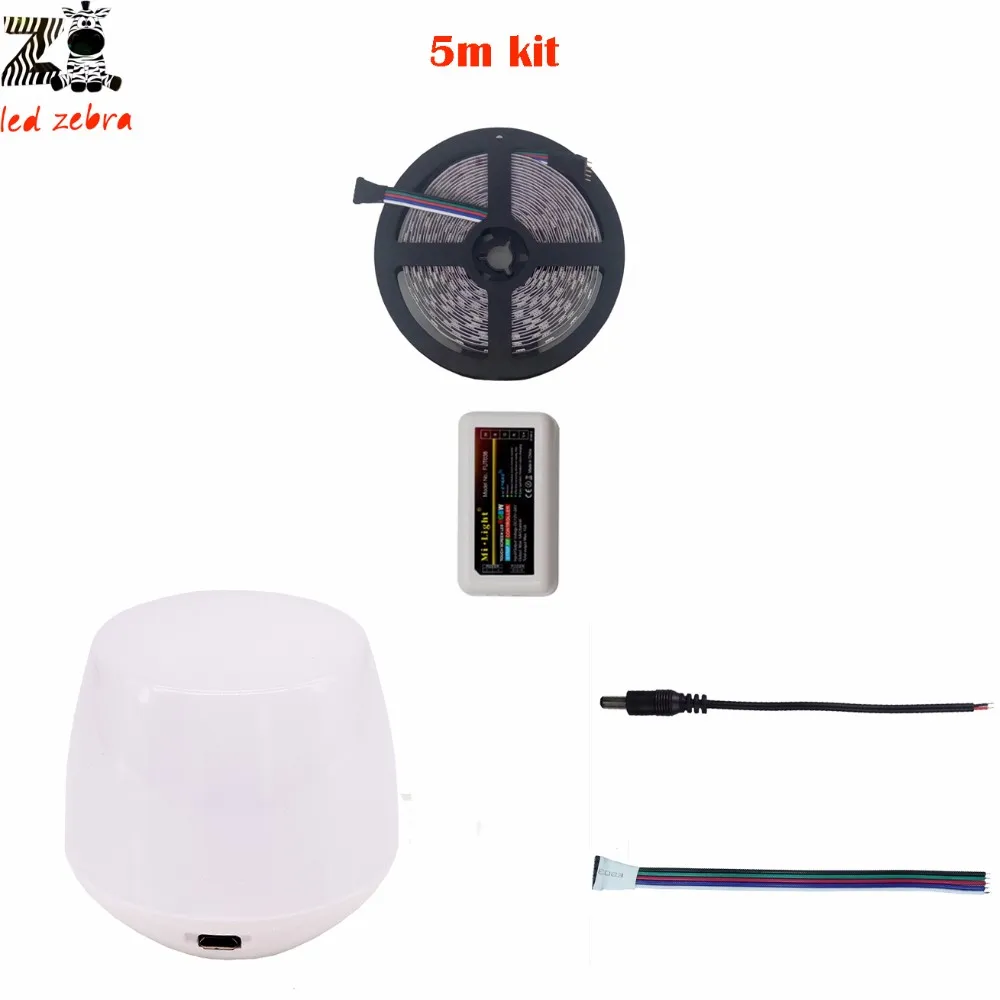

5m ip30 kit&5m ip65 kit:

-13

package include:

1pcs 5m ip30/ip65 led strip

1pcs wifi controller

1pcs led controller

1pcs dc male connector

1pcs 5pin connenctor


led strip Secification:
LED Type: 5050 RGBW/RGBWW SMD LED
Quantity: 300 leds / 5 Meter or 60 leds / Meter
View angle: 120 °
Working Input Voltage: DC12V
Working Temperature: -20 ° ~ 60 °
Long life:> 100,000 hours
led strip light type: rgbw/rgbww
Waterproof level: IP65 Waterproof
                              IP20 Non-waterproof




rgbw led controller specification:

Size: 85*45*23mm
Working voltage: DC 12V ~ 24V
Control way: R G B W three channels
Max load per channel: 6A
Total Output Current: 18A
Output connection: Common Anode(+)
Control distance: 30 meters

Mi Light WiFi Controller
Features
ibox is an upgraded wifi box for mi.light series,which is an exquisite light itself. with easy link to the wifi router,you will be able to control the lights anywhere.
app long disatsnce control
with wifi &smart phone app,you can control the lights anywhere,compatible with ios,android 4.3 or above.
compatibility
2.4GHz RF chip,compatible with all mi.light series.
timer function
automatic on/off with timer funtion.
color changing &dimmable
16 milions of colors to choose,dimmable,saturation control.

parameters
model no:ibox 1
input:dc5v/500ma
color:rgb
protocol:2.4GHz,wifi 802.11b/g/n
size:diameter 70mm, heigh 68mm
GW:50g

instructions
supply power for the device with usb power adapter,dc5v/500ma

app download
search \'milight\' from apple store,or scan the code shown on the left.
search \'milight\' from google play store,or scan the code shown on the left.(android 4.3 or above)

smart configuration
1.open WLAN via mobile phone,connect to the wireless router.
2.press \'RST\'(the SYS indicator light flickers,the LINK indicator light flashes)
3.open milight app,press + to start configuration
4.tyoe in your wireless password,press\'start configuration\'
5.after the configuration is successful,return to devices list,click to seach device,then you can control it though the phone.

caution
1.cannot exposure to sunshine in case of ageing.
2.avoid contact with  corrosive liquids,ie strong alkaline liquid.
3.pay attention to fire,moisture,fall off.
4.working temperature ~40C-10C,storage temperature -20C~60C.
11584115821158111583
